Scaphoid Fracture - Hand

Summary
- Scaphoid Fractures are the most common carpal bone fracture, often occurring after a fall onto an outstretched hand.
- Diagnosis can generally be made by dedicated radiographs but CT or MRI may be needed for confirmation.
- Treatment may require a prolonged period of cast immobilization, percutaneous surgical fixation, or open reduction and internal fixation.

Epidemiology
- Incidence
  - 15% of acute wrist injuries
  - 60% of all carpal fracture
  - 8 per 100,000 females, 38 per 100,000 males
- Demographics
  - 2 :1 male : female
  - most common in third decade of life
- Anatomic location
  - percentage of fractures by scaphoid anatomic location

    waist -65%

    proximal third - 25%

    distal third - 10%

    Historically the distal pole is most common location in pediatrics due to ossification sequence, however more recently waist fractures have become most common

Etiology
- Pathophysiology
  - pathoanatomy

    most common mechanism of injury is axial load across a hyper-dorsiflexed, pronated and ulnarly-deviated wrist

    common in contact sports

    transverse fracture patterns are considered more stable than vertically or obliquely oriented fractures
- Associated conditions

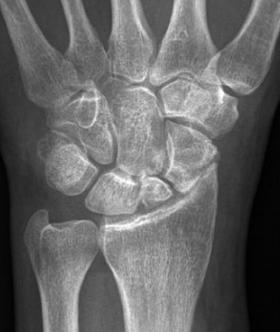

  - SNAC (Scaphoid Nonunion Advanced Collapse)

Anatomy
- Osteology
  - complex 3-dimensional structure described as resembling a boat, skiff, and twisted peanut
  - oriented obliquely from extremity's long-axis (implications for advanced imaging techniques)
  - largest bone in proximal carpal row
  - > 75% of scaphoid bone is covered by articular cartilage
  - articulates with radius, lunate, trapezium, trapezoid, and capitate
- Blood supply
  - major blood supply is dorsal carpal branch (branch of the radial artery)

    enters scaphoid in a nonarticular ridge on the dorsal surface and supplies proximal 80% of scaphoid via retrograde blood flow
  - minor blood supply from superficial palmar arch (branch of volar radial artery)

    enters distal tubercle and supplies distal 20% of scaphoid
  - creates vascular watershed and poor fracture healing environment
- Biomechanics
  - link between proximal and distal carpal row
  - both intrinsic and extrinsic ligaments attach and surround the scaphoid
  - the scaphoid flexes with wrist flexion and radial deviation and extends during wrist extension and ulnar deviation (same as proximal row)
- See Wrist Ligaments and Biomechanics for more detail

                        Classification

                                            Herbert and Fisher Classification (based on fracture stability)

                                            Type A

                                            Stable, acute fractures

                                            Type B

                                            Unstable, acute fractures (distal oblique, complete waist, proximal pole, trans-scaphoid and perilunate associated fractures)

                                            Type C

                                            Delayed union characterized by cyst formation and fracture widening

                                            Type D

                                            Nonunion

                                            Mayo classification (based on location of fracture line)

                                            Type I

                                            Distal tubercle fracture

                                            Type II

                                            Distal articular surface fracture

                                            Type III

                                            Distal third fracture

                                            Type IV

                                            Middle third fracture

                                            Type V

                                            Proximal third fracture

                                            Russe Classification (based on fracture pattern)

                                            Type I

                                            Horizontal oblique fracture line

                                            Type II

                                            Transverse fracture line

                                            Type III

                                            Vertical oblique fracture line

Presentation
- History
  - high or low energy fall onto outstretched hand
- Symptoms
  - variable level of pain over wrist
- Physical exam
  - inspection

    wrist swelling

    rarely any ecchymosis, hematoma, or gross deformity
  - motion

    worsened wrist pain with circumduction
  - pain with resisted pronation
  - provocative tests

    anatomic snuffbox tenderness dorsally

    scaphoid tubercle tenderness volarly

    scaphoid compression test

    positive test when pain reproduced with axial load applied through thumb metacarpal

    87-100% sensitivity and 74% specificity when all three tests positive within 24 hours of injury

Imaging
- Radiographs
  - recommended views

    neutral rotation PA

    lateral

    semi-pronated (45°) oblique

    scaphoid

    30 degree wrist extension, 20 degree ulnar deviation

    waist fractures seen best
  - findings

    if radiographs are negative (27%) and there is a high clinical suspicion

    repeat radiographs in 14-21 days
- Bone scan
  - indications

    occult fractures in acute setting
  - sensitivity and specificity

    specificity of 98%, and sensitivity of 100%, PPV 85% to 93% when done at 72 hours
- MRI
  - indications

    most sensitive for diagnosis occult fractures < 24 hours

    immediate identification of fractures / ligamentous injuries

    assessment of vascular status of bone (vascularity of proximal pole)

    proximal pole AVN best determined on T1 sequences
  - sensitivity and specificity

    approach 100% for occult fractures
- CT scan with 1mm cuts along scaphoid axis
  - indications

    best modality to evaluate fracture location, angulation, displacement, fragment size, extent of collapse, and progression of nonunion or union after surgery
  - sensitivity and specificity

    62% sensitivity and 87% specific for determining stability and fracture

    less effective than bone scan and MRI to diagnose occult fracture

Treatment
- Nonoperative
  - cast immobilization

    indications

    stable nondisplaced fracture (majority of fractures)

    if patient has normal radiographs but there is a high level of suspicion can immobilize in thumb spica and reevaluate in 12 to 21 days

    outcomes

    scaphoid fractures with <1mm displacement have union rate of 90%
- Operative
  - percutaneous screw fixation

    indications

    unstable fractures as shown by

    proximal pole fractures

    displacement > 1 mm without significant angulation or deformity

    non-displaced waist fractures

    to allow decreased time to union, faster return to work/sport, similar total costs compared to casting

    outcomes

    union rates of 90-95% with operative treatment of scaphoid fractures

    CT scan is helpful for evaluation of union
  - open reduction internal fixation

    indications

    significantly displaced fracture patterns

    15° scaphoid humpback deformity

    radiolunate angle > 15° (DISI)

    intrascaphoid angle of > 35°

    scaphoid fractures associated with perilunate dislocation

    comminuted fractures

    unstable vertical or oblique fractures

    outcomes

    accuracy of reduction correlated with rate of union

Technique
- Cast immobilization
  - technique

    start immobilization early

    nonunion rates increase with delayed immobilization of > 4 weeks after injury

    long arm spica vs short arm casting is controversial

    no consensus

    duration of casting depends on location of fracture and risk of nonunion

    immobilization maintained until radiographic fracture healing demonstrated, usually no sooner than 8 weeks

    may be required for up to 12-14 weeks for high-risk fracture patterns/patients

    athletes should not return to play until imaging shows a healed fracture

    may opt to augment with pulsed electromagnetic field (studies show beneficial in delayed union)

    formal therapy following immobilization to regain range of motion
- Percutaneous screw fixation
  - approach

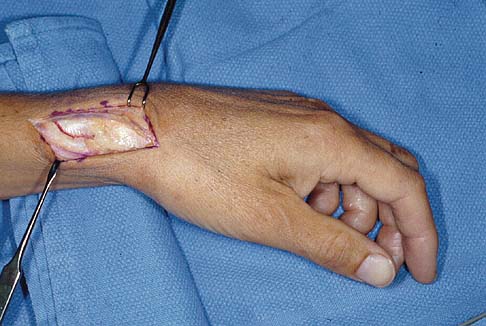

    dorsal approach

    best for proximal pole fractures

    care must be taken to avoid EPL tendon and to preserve the blood supply when entering the dorsal ridge

    limit exposure to the proximal half of the scaphoid

    percutaneous has higher risk of unrecognized screw penetration of subchondral bone

    volar approach

    indicated in waist and distal pole fractures

    fractures with humpback flexion deformities

    allows exposure of the entire scaphoid

    avoids jeopardizing scaphoid blood supply

    uses the interval between the FCR and the radial artery

    careful capsule management to allow closure and restoration of RSC ligament

    arthroscopic assisted approach

    has also been described to aid in anatomic reduction
  - technique

    precise wire placement in central axis to guide cannulated screw

    do not violate scaphotrapeziotrapezoidal joint cartilage

    rigidity is optimized by long screw placed down the central axis of the scaphoid

    oblique fluoroscopic images to confirm placement and appropriate screw length
- Open reduction internal fixation
  - approach

    dorsal and volar approaches as above
  - technique

    allows direct visualization and reduction at fracture site

    screw placement as above

Complications
- Scaphoid Nonunion
  - incidence

    5-10% following immobilization, higher rates for proximal pole fractures
  - risk factors

    vertical oblique fracture pattern, displacement >1mm, advancing age, nicotine use
  - treatment

    vascularized or nonvascularid bone grafting procedures
- Osteonecrosis
  - incidence

    13-50% of all scaphoid fractures

    many studies showing 100% in proximal fifth fractures with immobilization
- Malunion
  - flexion of distal fragment and extension of proximal fragment due to pull of scapholunate interosseous ligament creating shortened bone with humpback deformity
  - treatment

    no clear indications supporting operative versus non-operative treatment
- Subchondral bone penetration with arthrosis due to prominent hardware
  - incidence

    seen following mini-open fixation techniques

    incidence has decreased with use of fluoroscopy
  - treatment

    revision surgical fixation versus implant removal following union
- SNAC wrist (scaphoid nonunion advanced collapse)

Prognosis
- Incidence of AVN (without treatment) is directly correlated with proximity of fracture to proximal pole
  - proximal 5th AVN rate of 100%
  - proximal 3rd AVN rate of 33%
