Osteoid Osteoma

Author: Colin Woon

Topic updated on 04/28/13 11:37pm

Introduction

A self limited benign bone lesion usually in younger patients
- presents with pain unrelated to activity
Epidemiology
- demographics
  - 5-30 years (mostly in the second decade of life)
  - 2:1 male to female ratio
- location
  - 50% in diaphysis or metaphysis of long bones of lower extremity (tibia, femur)
    - proximal femur > tibia diaphysis > posterior elements of the spine > fingers and carpus > feet
  - the most common location is the proximal femur
  - the most common intra-articular location is the hip joint
  - the most common locations in the hand are the scaphoid and proximal phalanx
Pathophysiology
- thought to be from nerve fibers associated with blood vessels within the nidus
- pain is secondary to prostaglandin secretion and COX1/2 expression
  - COX1/2 expression in tumor makes it sensitive to NSAID therapy
Associated conditions
- orthopaedic manifestations
  - painful scoliosis
  - growth disturbance
  - flexion contractures
Prognosis
- pain from lesions usually resolves after an average of 3 years
- the lesion spontaneously resolves in 5-7 years
- in the spine, early resection (within 18 months) leads to resolution of scoliosis in young children (<11years)

Anatomy

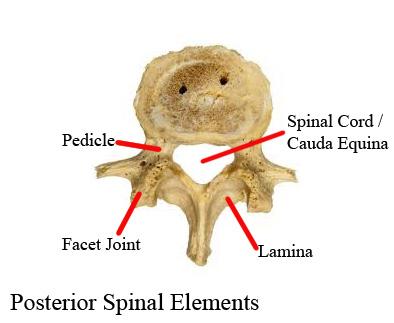

Posterior elements of the spine include
- facet joints
- pedicles
- lamina

Symptoms

Symptoms
- pain that
  - increases with time
  - worse at night and with drinking ETOH
  - relieved by NSAIDS
  - may be adjacent to joint and mimic arthritis
- hand lesions may present with painless swelling
Physical exam
- joint effusions
- contractures
- limp
- muscle atrophy
- may present as painful nonstructural scoliosis
  - as a result of paravertebral spasm
  - the osteoid osteoma is located on the concave side at the apex of the curve

Imaging

Radiographs
- intensly reactive bone around radiolucent nidus
  - nidus is < 1.5 cm (otherwise osteoblastoma)
  - nidus may be difficult to see on plain xray
    - because intense periosteal reaction may obscure the nidus
CT
- study of choice
- to identify nidus surrounded by a sclerotic rim
Bone scan
- always hot with intense focal uptake

Histology

Characterized by
- distinct demarcation between nidus and reactive bone
- nidus contains uniform osteoid seams of immature osteoid trabeculae (woven bone) with a sharp border of osteoblastic rimming
  - uniform plump osteoblasts have regularly shaped nuclei with abundant cytoplasm
- reactive bone seen in region of sclerotic border
- similar appearance to osteoblastoma
- no pleomorphic cells, and does not infiltrate surrounding bone

Differentials

Long bone osteoid osteomas need to be differentiated from
- stress fx
- osteomyelitis
- Ewing's sarcoma
Posterior spinal element lesions need to be differentiated from
- aneurysmal bone cyst
- osteoblastoma (see table below)

	Osteoid Osteoma	Osteoblastoma
Size	<1.5cm	>1.5cm
Site	Long bone diaphysis	Posterior elements of the spine, long bone metaphysis
Location	Proximal femur > tibia diaphysis > spine	Spine > proximal humerus > hip
Natural History	Self-limited	Progressive
Symptoms	Nocturnal pain, relieved by NSAIDS	Dull ache, not relieved by NSAIDS. >50% of spine tumors have neurologic symptoms.
Management of Spine Lesions	Nonsurgical management is 1st line. Surgery is 2nd line	Surgery is always indicated as they don't respond to nonsurgical treatment.

Treatment

Nonoperative
- clinical observation and NSAID administration
  - indications
    - NSAIDS are 1st line and will lead to a dramatic decrease in symptoms
      - ~50% can be treated with NSAIDS alone
    - also indicated for painful spine lesions without scoliosis
    - fingertip lesions (distal phalanx) may not respond to NSAIDS
Operative
- percutaneous radiofrequency ablation
  - relative indications
    - failure of medical management
    - periarticular lesions, which increase the risk of cartilage injury and premature degenerative disease.
    - spinal lesions (controversial) - depends on the location of the lesion and proximity to neural elements
  - contraindications
    - lesions close to spinal cord or nerve roots
  - technique
    - done under CT guidance
    - probe at 80-90 deg C for 6 minutes to produce a 1cm zone of necrosis
  - outcomes
    - 90% of patients are successfully treated with 1-2 sessions of RFA
    - 10-15% recurrence rate
- surgical resection
  - indications
    - location of lesion is not amenable to CT guided percutaneous radiofrequency ablation
    - spine lesion associated with painful scoliosis
  - technique
    - successful treatment depends on complete marginal resection of nidus (scelotic bone is normal and can be left behind)
      - percutaneous approach
      - open approach
  - outcomes
    - depending on the child's age and duration of symptoms, removal of the osteoid osteoma will allow resolution of scoliosis without further treatment

Image Bank

	Location	Xray	CT	Bone scan	MRI	MRI	Histo
Case A	tibia
Case B	prox. femur
Case C	tibia
Case D	prox tibia
