Low Ankle Sprain

Author: John Badylak

Topic updated on 04/02/13 7:24am

Introduction

Ankle sprains can be conceptually broken down into
- high ankle sprain
  - syndesmosis injury
  - 1-10% of all ankle sprains
- low ankle sprain (this topic)
  - ATFL and CFL injury
  - >90% of all ankle sprains
Epidemiology
- ankle sprains are the most common reason for missed athletic participation
- most common injury in dancers
Associated injuries include
- osteochondral defects
- peroneal tendon injuries
- deltoid ligament injury (isolated deltoid ligament injuries are very rare)
- fractures
  - 5th metatarsal base
  - anterior process of calcaneus
  - lateral or posterior process of the talus

Anatomy

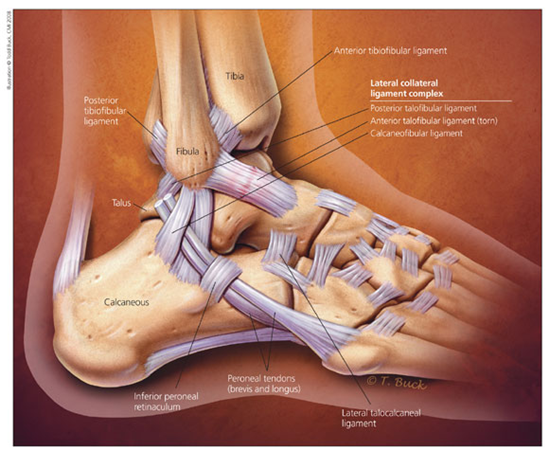

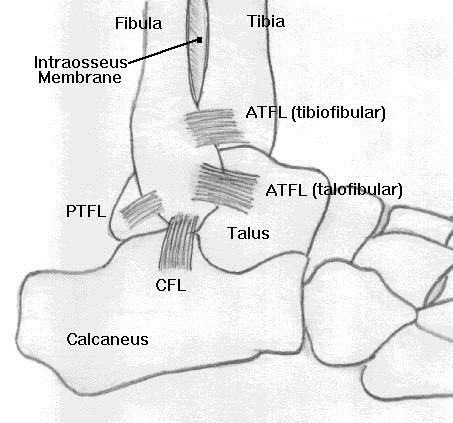

Ligamentous anatomy of the ankle
ATFL
- most commonly involved ligament in low ankle sprains
- mechanism is plantar flexion and inversion
- physical exam shows drawer laxity in plantar flexion
CFL
- 2nd most common ligament injury in lateral ankle sprains
- mechanism is dorsiflexion and inversion
- physical exam shows drawer laxity in dorsiflexion
- subtalar instability can be difficult to differentiate from posterior ankle instability because the CFL contributes to both
PTFL
- less commonly involved

Classification

Classification of Low Ankle Sprains

Ligament disruption

Ecchymosis and swelling

Pain with weight bearing

Grade I
none

minimal

normal

Grade II
stretch without tear

moderate

mild

Grade III
complete tear

severe

severe

Presentation

Symptoms
- pain with weight bearing
- recurrent instability
- catching or popping sensation may occur following recurrent sprains
Physical exam
- focal tenderness and swelling over involved ligament(s)
- anterior drawer test
  - possible laxity with anterior drawer and eversion/inversion stress testing

Imaging

Radiographs
- indications for radiographs with an ankle injury include (Ottawa ankle rules)
  - inability to bear weight
  - medial or lateral malleolus point tenderness
  - 5MT base tenderness
  - navicular tenderness
- radiographic views to obtain
  - standard ankle series (weight bearing)
    - AP
    - lateral
    - mortise
  - ER rotation stress view
    - useful to diagnosis syndesmosis injury in high ankle sprain
    - look for asymmetric mortise widening
    - medial clear space widening > 4mm
    - tibiofibular clear space widening of 6 mm

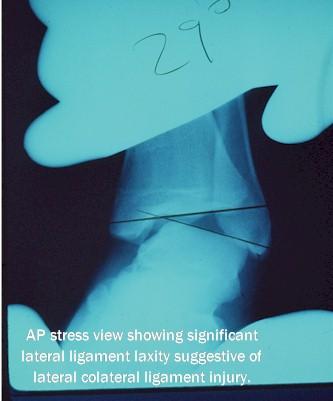

  - varus stress view
    - used to diagnose injury to ATFL or CFL
    - measures ankle instability by looking at talar tilt and anterior talar translation
MRI
- indications
  - consider MRI if pain persists for 8 weeks following sprain
- useful to evaluate
  - peroneal tendon pathology
  - osteochondral injury

Treatment

Nonoperative
- RICE, elastic wrap to minimize swelling, followed by therapy
  - indications
    - Grade I, II, and III injuries
  - technique
    - may require short period of weight-bearing immobilization in a walking boot or cast, but early mobilization facilitates a better recovery
  - therapy
    - once swelling and pain have subsided and patient has full range of motion begin neuromuscular training with a focus on peroneal muscles strength and proprioception training
    - a functional brace that controls inversion and eversion is typically used during the strengthening period and used as prophylactic treatment during high risk activities thereafter
    - early functional rehabilitation allows for quickest return to physical activity
Operative
- anatomic reconstruction vs. tendon transfer with tenodesis
  - indications
    - Grade I-III that continue to have pain and instability despite extensive nonoperative management
    - Grade I-III with a bony avulsion
  - technique (see below)
- arthroscopy
  - indications
    - recurrent ankle sprains and chronic pain caused by impingement lesions
      - anteriorinferior tibiofibular ligament impingement
      - posteromedial impingement lesion of ankle
  - procedure
    - debride impinging tissue

Surgical Techniques

Gould modification of Brostrom anatomic reconstruction
- procedure
  - an anatomic shortening and reinsertion of the ATFL and CFL
  - reinforced with inferior extensor retinaculum and distal fibular periosteum
- results
  - good to excellent results in 90%
Tendon transfer and tenodesis (Watson-Jones, Chrisman-Snook, Colville, Evans)
- procedure
  - a nonanatomic reconstruction using a tendon transfer
- technique
  - any malalignment must be corrected to achieve success during a lateral ligament reconstruction
  - Coleman block testing used to distinguish between fixed and flexible hindfoot varus
- results
  - subtalar stiffness is a common complication

Rehabilitation

Return to play
- depends on, grade of sprain, syndesmosis injury, associated injuries, and compliance with rehab

  Classification

  Time to RTP

  Grade I
  1-2 weeks

  Grade II
  1-2 weeks

  Grade III
  few weeks

  High ankle (immobilization)
  several weeks

  High ankle (screw fixation)
  season
Prevention
- prevention techniques in athletes with prior sprains includes
  - semirigid orthosis
  - evertor muscle (peroneals) strengthening
  - proprioception exercises
  - season long prevention program

Complications

Pain and instability
- up to 50% continue to experience symptoms following and acute ankle sprain
- most common cause of chronic pain is a missed injury, including
  - injury to the anterior process of calcaneus
  - injury to the lateral or posterior process of the talus
  - injury to the base of the 5th metatarsal
  - osteochondral lesion
  - injuries to the peroneal tendons
  - injury to the syndesmosis
  - tarsal coalition
  - impingement syndromes
