Review Question - QID 219894

This patient is presenting with a distal third radial shaft fracture with likely associated distal radioulnar joint (DRUJ) injury, eponymously known as a Galeazzi fracture. This is supported by gross radial shortening and dorsal displacement of the distal ulna in relation to the distal radial fragment. In the setting of DRUJ injury, the distal oblique bundle (DOB) may act as a primary stabilizer to forearm rotation.

Restoration of stable forearm pronosupination is a critically important aspect of surgical management of forearm injuries. Although appropriate restoration of bony anatomy (e.g., the recreation of the anatomic radial bow) is often the focus of forearm fracture fixation, the role of soft tissue structures in forearm stability should not be overlooked. The triangular fibrocartilage complex (TFCC), primarily the dorsal and palmar radioulnar ligaments, serves as a primary stabilizer of the DRUJ, which itself plays a fundamental role in forearm stability. In the setting of TFCC injury, the distal oblique bundle of the interosseous membrane (IOM) may act as a primary stabilizer, conferring stability to the forearm during rotation.

Noda et al. performed a cadeveric study detailing the anatomy of the IOM of the forearm, with specific attention to ligament attachment locations. They noted that the IOM included five distinct ligaments (central band, accessory band, distal oblique bundle, proximal oblique cord, and dorsal oblique accessory cord), with varying incidence among specimens, and quantified their precise attachment locations as a percentage of total bone length. They concluded that these detailed anatomical findings are valuable for planning graft placement in ligament reconstruction surgery and for future biomechanical research on IOM function.

Moritomo reviewed the current concepts in wrist anatomy and biomechanics pertaining to the distal interosseous membrane (DIOM) of the forearm, focusing on its role as a secondary stabilizer of the DRUJ. They found that the DOB, a key component of the DIOM, exhibits significant anatomical variation in thickness and presence (found in 40% of specimens), and that its presence correlates with increased DRUJ stability, especially after ulnar shortening procedures where the osteotomy is performed proximal to the DIOM. They concluded that the DIOM, particularly when a substantial DOB is present, plays a crucial role in DRUJ stability, especially in cases of ulnar-side injuries or following procedures like the Sauvé-Kapandji, and that anatomical variations of the DIOM should be considered during surgical planning.

Moritomo et al. provided another review of the DOB of the DIOM of the forearm, describing its anatomy and relationship to the TFCC. They reported that the DOB originates from the distal ulna and inserts on the dorsal inferior rim of the sigmoid notch of the radius, and likely acts with the TFCC as isometric collateral ligaments of the DRUJ. They concluded that the DIOM, and by extension, the DOB has a more important role in stabilizing the DRUJ following TFCC injury or ulnar shortening, and the presence of a robust DOB may be a risk factor for nonunion after proximal ulnar shortening.

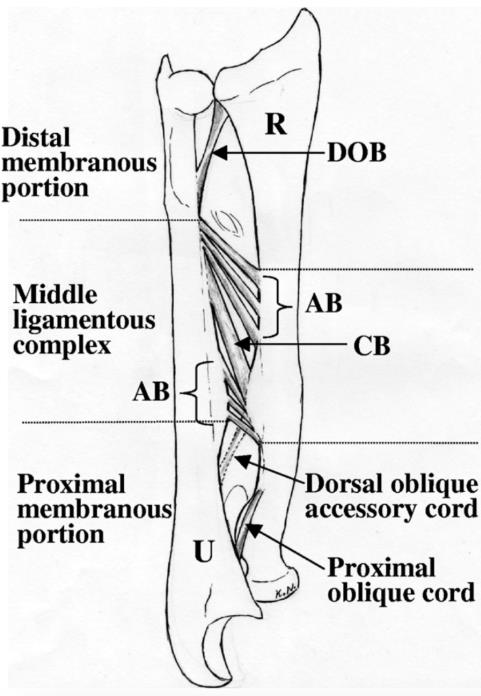

Figure A demonstrates the posteroanterior (PA) and lateral radiographs of a Galeazzi fracture. Illustration 1, from the Noda et al. reference, is a diagrammatic image of the interosseous membrane and commonly described components. Illustration 2, from this same reference, demonstrates multiple cadaveric dissections of the central band (asterisks) and DOB (arrows), highlighting the anatomic variation that exists in these structures.

Incorrect Answers:
Answer 1: The annular ligament plays a role in proximal radioulnar joint stability, rather than DRUJ stability.
Answer 2: The central band, albeit the most commonly identified and structurally significant portion of the interosseous membrane, does not play a significant role in DRUJ stability.
Answers 4-5: These structures have not been identified to play significant roles in forearm stability.
