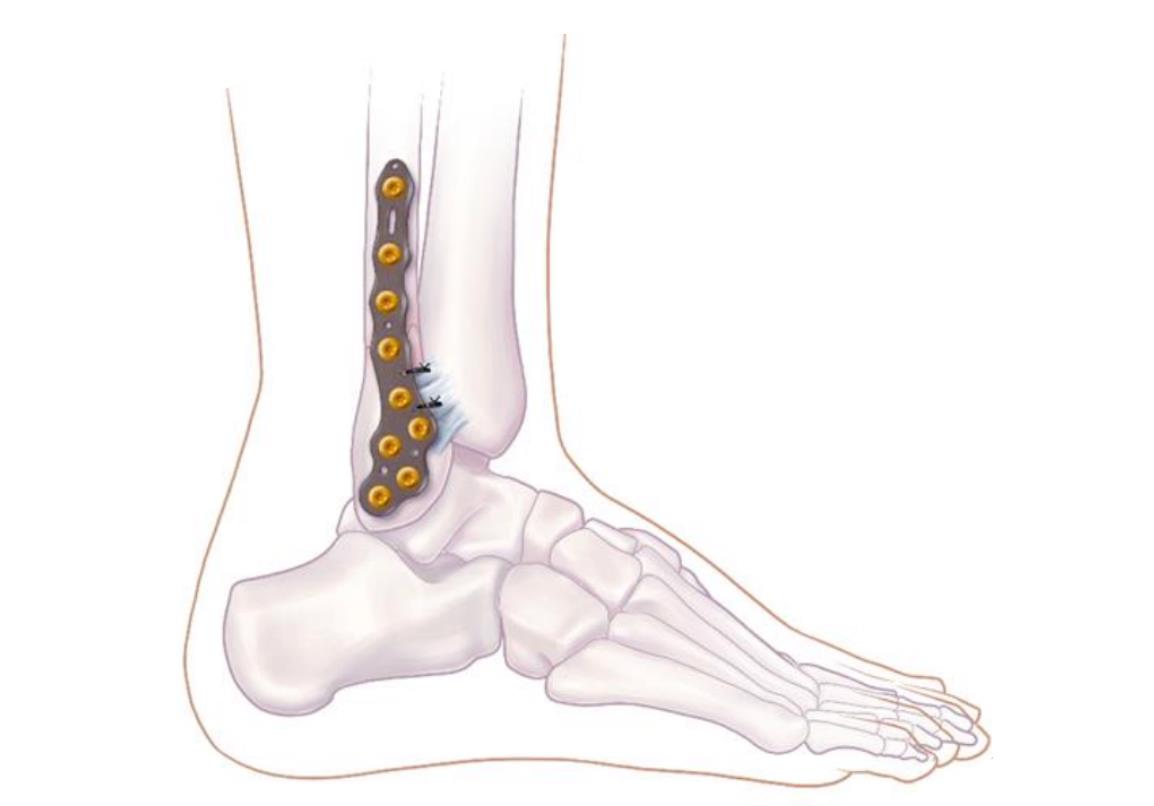

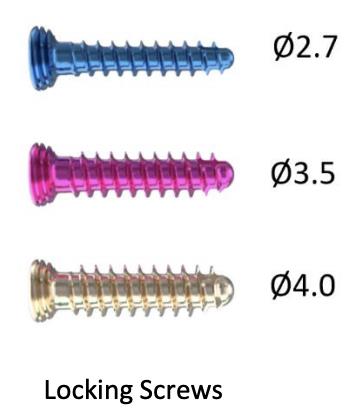

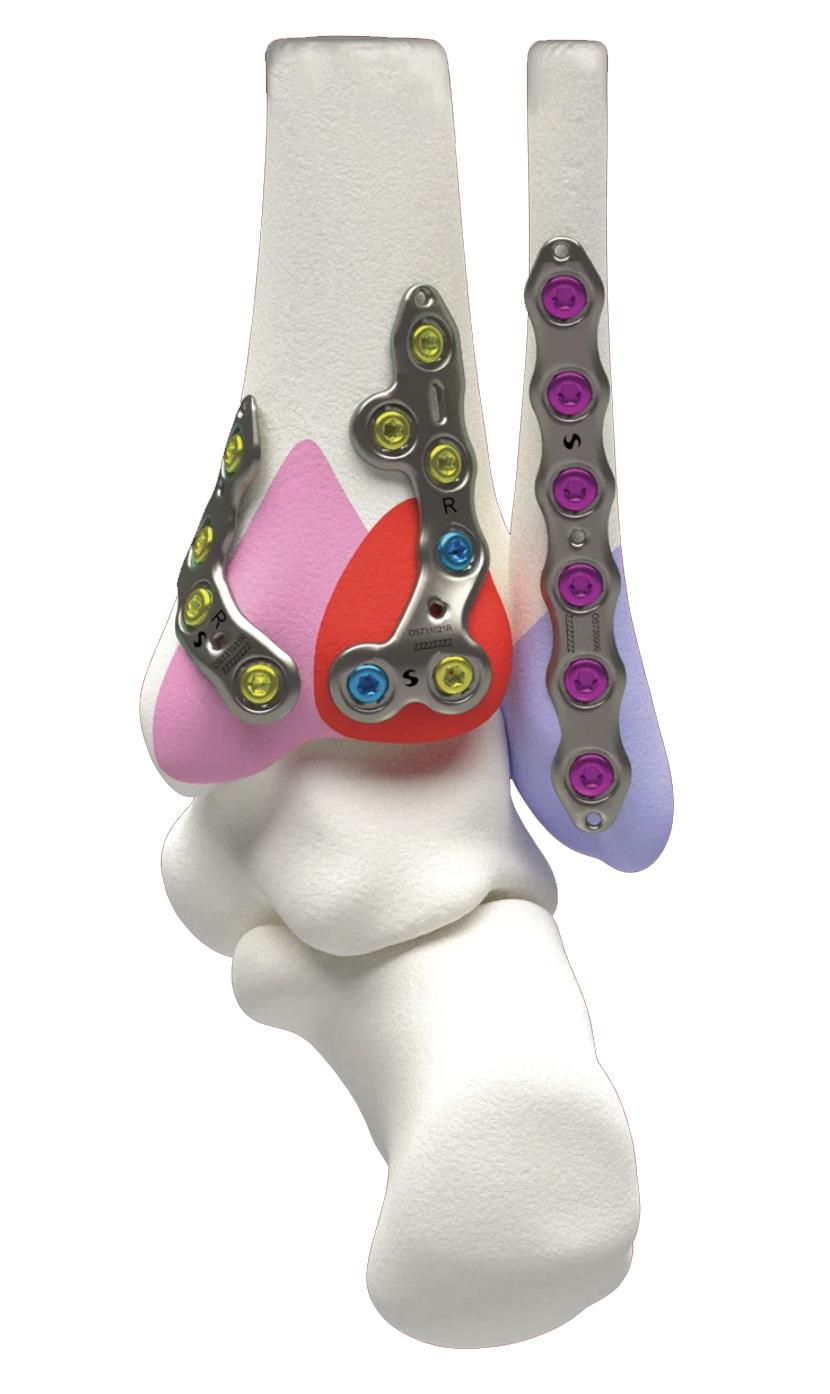

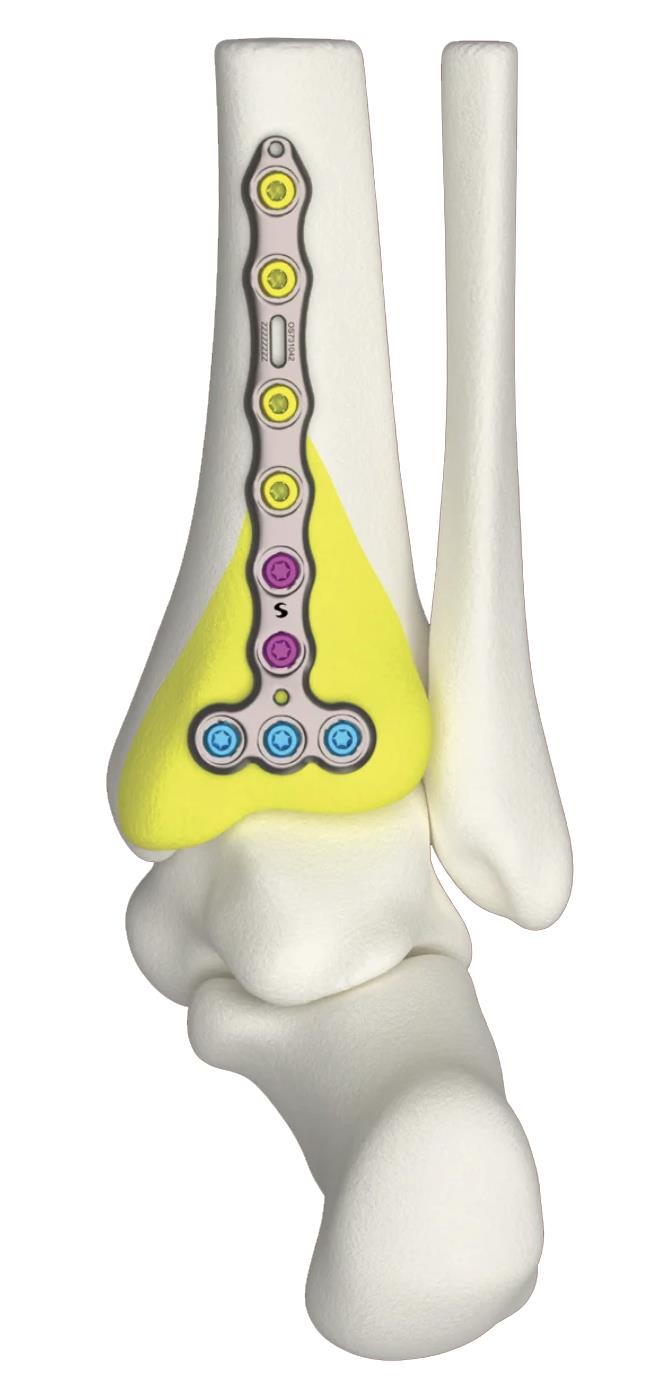

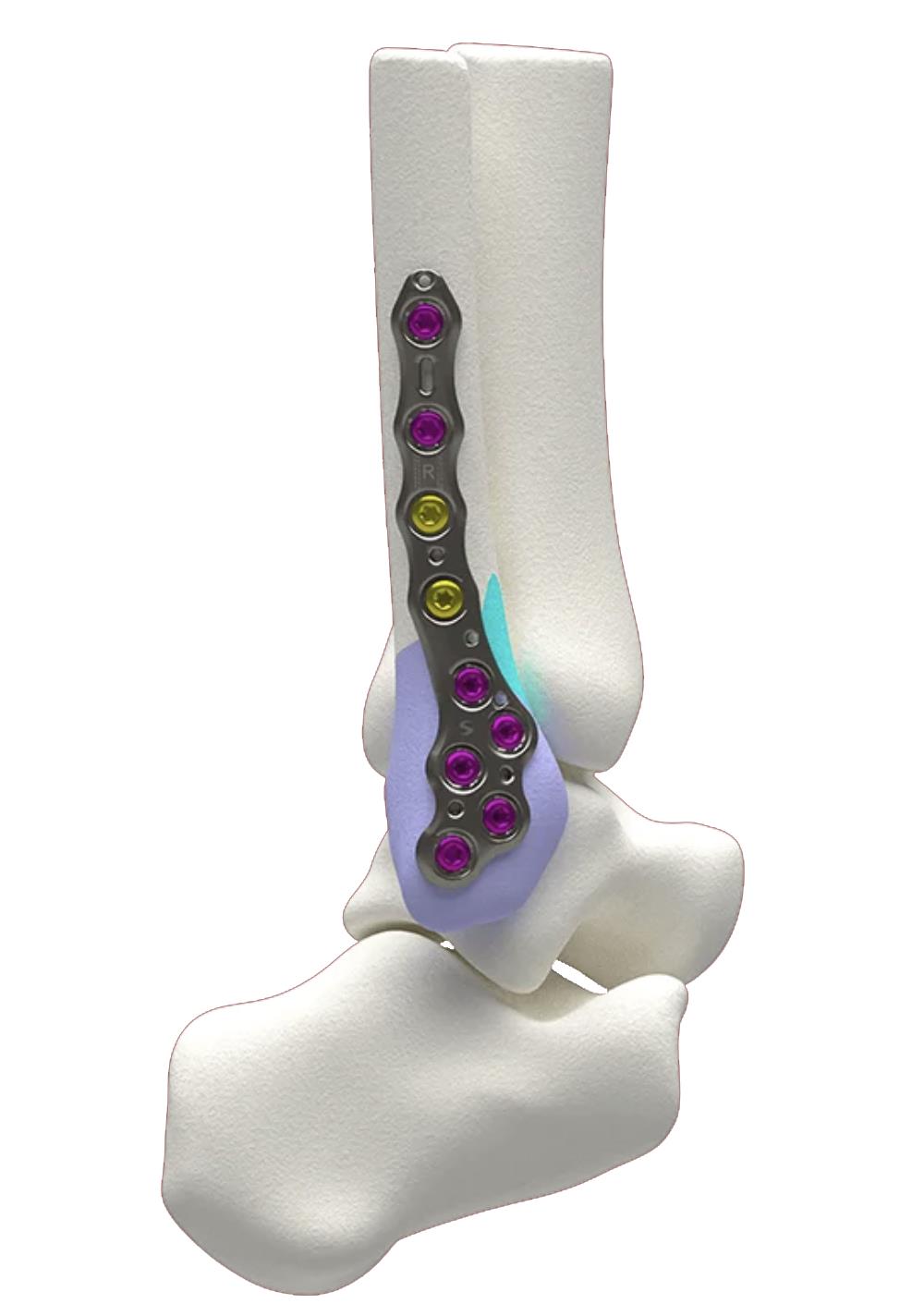

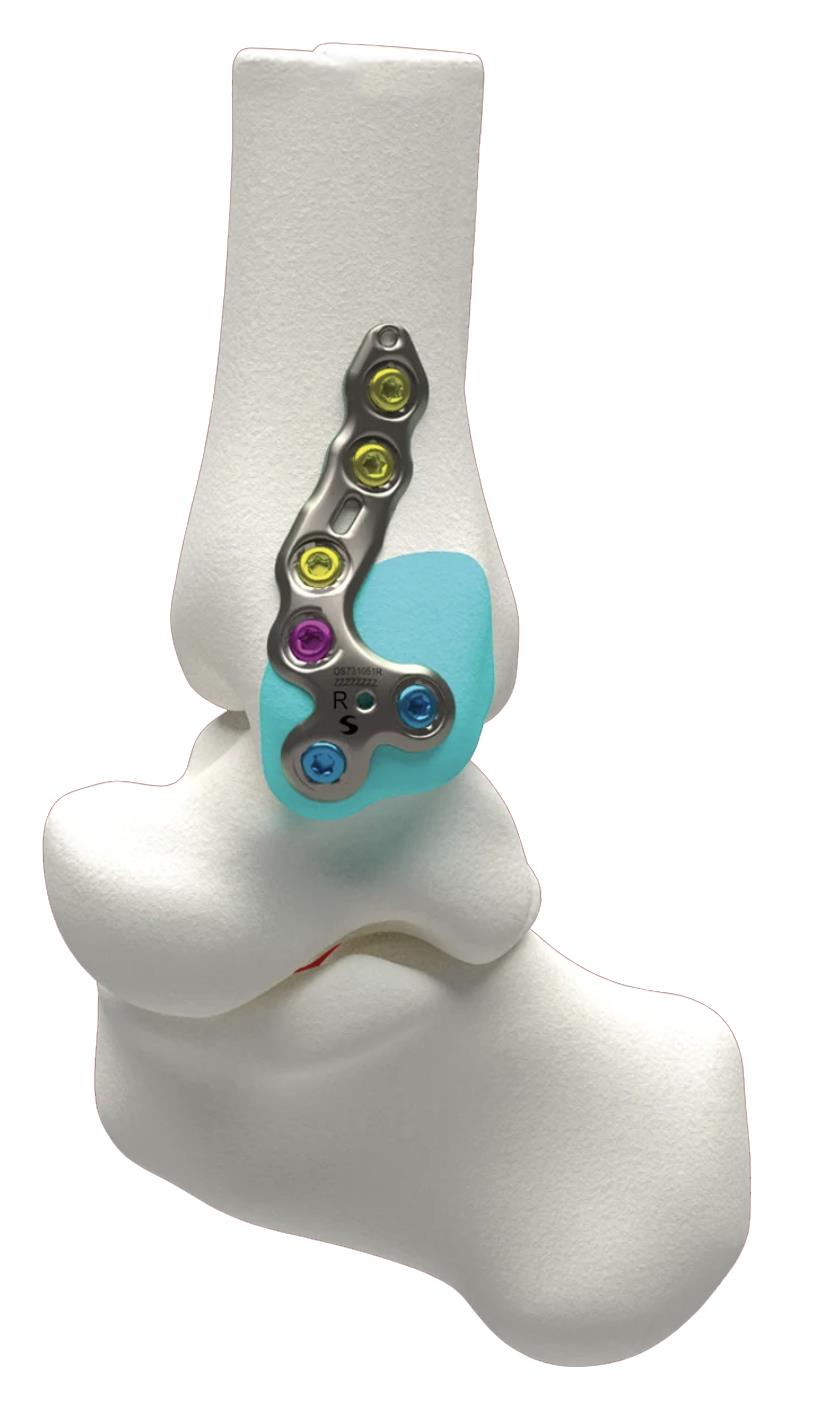

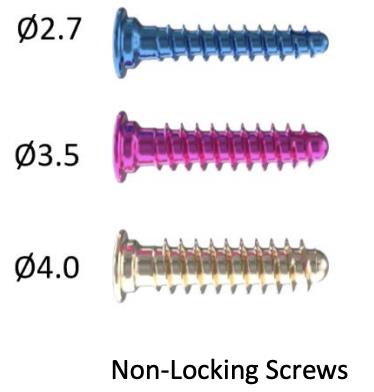

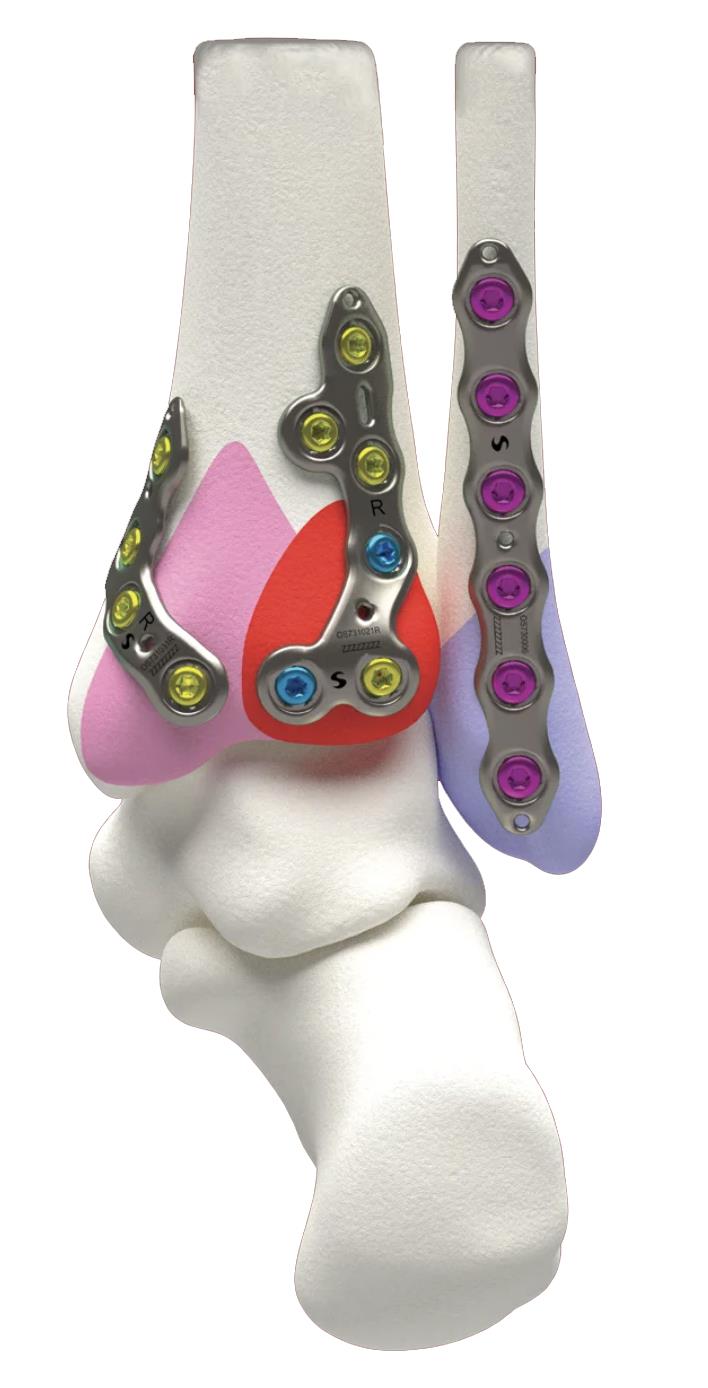

Summary VolitionTM Ankle Fracture Plates are available in six varieties: anatomic fibula plate, straight fibula plate, anatomic medial malleolar plate, posteromedial tibial plates (Type IIB), posterolateral tibial plates (Type IIA) and posterior tibial plates (Type III). the posterior tibial fracture plates are designed around the mason & molloy posterior malleolar fracture classification VolitionTM Plating System non-locking screws are compatible with washers and any screw hole in the plates. VolitionTM Plating System locking screws are compatible with any screw hole. Biological Materials Plates type II anodize plates produce anti-galling properties + Type III anodize screws result in minimizing coldwelding for easier implant removal, if required utilize softer plate material/alloy Indications Indications ankle fractures malleolar fractures distal fibula fractures medial malleolus fractures posterior malleolar fractures unstable fracture patterns displaced fractures comminuted fractures revision fixation Contraindications active infection severe osteoporosis compromised vascularity poor soft tissue implant hypersensitivity skeletal immaturity noncompliant patients Anatomy Osteology distal fibula lateral column support fibular length/rotation affects mortise congruency and syndesmotic alignment medial malleolus anterior/posterior collicular fragments can contribute to medial stability depending on pattern posterior malleolus/posterior plafond fragments consider fragment size, articular impaction, and syndesmotic attachment footprint when planning fixation syndesmotic region distal tibiofibular incisura relationship assess for malreduction risk and screw/construct planning needs Muscles lateral approach peroneal tendons posterior to fibula respect retinacular structures posterolateral corridor interval near peroneals and flexor hallucis longus posterior fragment access with attention to soft-tissue envelope posteromedial corridor posterior tibial tendon/FDL/FHL region protect neurovascular bundle Ligaments deltoid ligament medial stability considerations correlate with fracture pattern and mortise alignment syndesmotic complex AITFL/PITFL attachment considerations, including relevance to posterior malleolus and wagstaffe-type avulsions posterior capsule posterior approach dissection and fixation proximity reminders Nerves superficial peroneal nerve lateral exposure risk (variable course) identify/protect during distal fibular exposure sural nerve posterolateral approach risk protect with careful subcutaneous handling tibial nerve branches posteromedial approach risk maintain safe planes and protect the neurovascular bundle Blood supply anterior tibial contribution anterior ankle/dorsal soft-tissue handling reminders peroneal contribution lateral/posterolateral soft-tissue handling reminders posterior tibial contribution posteromedial dissection reminders prioritize atraumatic retraction and hemostasis Approach Medial and lateral malleolus use standard approaches and techniques for medial and lateral malleolar fracture fixation Posterior tibia/posterior malleolus summarize the manufacturer-depicted approach guidance tied to fracture type posterolateral approach advised for type iia fractures medial-posteromedial approach advised for type iib fractures posteromedial approach advised for type iii fractures approach choice depends on fracture pattern, soft tissues, and surgeon judgment Technique Approach & fracture reduction expose the anatomy, then clean and reduce the fracture per standard fracture care and protocols provisional fixation k-wires may be used to temporarily hold reduced bone fragments in place olive wires may be inserted in screw holes or wire slots; k-wires may be used through specific k-wire holes or wire slots to temporarily affix the plate (manufacturer materials) warning: k-wires/olive wires are not intended as permanent implants Screw and washer fixation (without plate) when screws may be used without a plate non-locking screws may be used to stabilize fractures without a plate; compatible washers are provided for optional use washers compatibility: washers are for use with non-locking screws (locking screws are not compatible with washers) trajectory precaution: when intending to use a washer, do not exceed the ±15° conical range of compatible trajectories lag technique reminder for compression with fully threaded screws used without a plate, use appropriate lag-drilling technique to apply compression between fragments lag technique may also be required for partially threaded cannulated screws (manufacturer materials) drilling + guides drill pilot and lag (glide) holes using appropriately sized drill bits and hand-held drill guides drill bits feature an AO connector for powered drills with AO couplers pilot hole drill bits/guides: single-stripe colored band lag drill bits/guides: double-stripe colored band note: variable-angle (conical) drill guides and the depth gauge extension are compatible with all 3 diameters of pilot hole drill bits and therefore have no colored bands depth measurement depth gauge extension method login to view 1 more bullet read the first digit from the drill bit and the second digit from the drill guide login to view 1 more bullet alternate depth probe method login to view 1 more bullet precaution login to view 2 more bullets countersink + insertion countersink is optional to minimize screw head prominence when used without a plate or washer login to view 1 more bullet insert screw using the AO screwdriver bit and AO handle Plate fixation plate selection and fit choose a plate to capture the bone fragments fit the plate to the bone as needed login to view 1 more bullet precautions login to view 4 more bullets provisional fixation through plate provisionally affix the plate with two or more olive wires and/or Ø1.6 mm k-wires before screw insertion olive wires may be inserted through any screw hole, k-wire hole, or wire slot Ø1.6 mm k-wires may be inserted through k-wire holes or wire slots as depicted login to view 1 more bullet drilling and screw insertion through plate on-axis drilling login to view 1 more bullet off-axis drilling login to view 1 more bullet variable-angle (conical) range login to view 2 more bullets depth measurement and insertion reminders login to view 2 more bullets special scenario unstable wagstaffe fragment login to view 1 more bullet finalize fixation implant as many screws as necessary to stabilize the bone fragments additional screws may be implanted outside the plate as needed, per screw and washer fixation (without plate) technique Surgery completion remove temporary fixation wires, instruments, and other non-implantable components prior to completion of surgery confirm positioning in 2 planes with fluoroscopy close per surgeon preference Technical specifications Plate families lateral anatomical fibular plate posterolateral tibial plates (type iia) posteromedial tibial plates (type iib) posterior tibial plates (type iii) medial plate straight plate available in several lengths ranging from 2 hole up to 8 hole Screw trajectory manufacturer-specified conical trajectory allowance through plate holes: ±15° Instrumentation overview provisional fixation olive wires and k-wires via screw holes, k-wire holes, and/or wire slots (plate-dependent) drill guides fixed-angle (tower) for on-axis; variable-angle (conical) for off-axis depth instruments depth gauge extension (two-digit readout method) and standard depth probe bending tools plate bending pliers and plate bending irons Screws Compatibility summary locking screws compatible with any screw hole not compatible with washers non-locking screws compatible with washers compatible with any screw hole Diameters available Ø2.7 mm Ø3.5 mm Ø4.0 mm Drill bit size compatibility Ø2.7 mm screw pilot drill bit: Ø1.9 mm lag drill bit: Ø2.71 mm Ø3.5 mm screw pilot drill bit: Ø2.4 mm lag drill bit: Ø3.5 mm Ø4.0 mm screw pilot drill bit: Ø2.71 mm lag drill bit: Ø4.0 mm note: the Ø2.7/Ø2.71 mm drill bit and drill guides are dual purpose (pilot for Ø4.0 screws; lag for Ø2.7 screws) Drill guide color-band convention pilot guides single-stripe colored band lag guides double-stripe colored band Key precautions do not exceed the stated conical trajectory range (especially when using a washer) do not read depth from the top of drill guides; use depth measurement instruments as instructed do not use countersink or screwdriver bits with powered instruments
